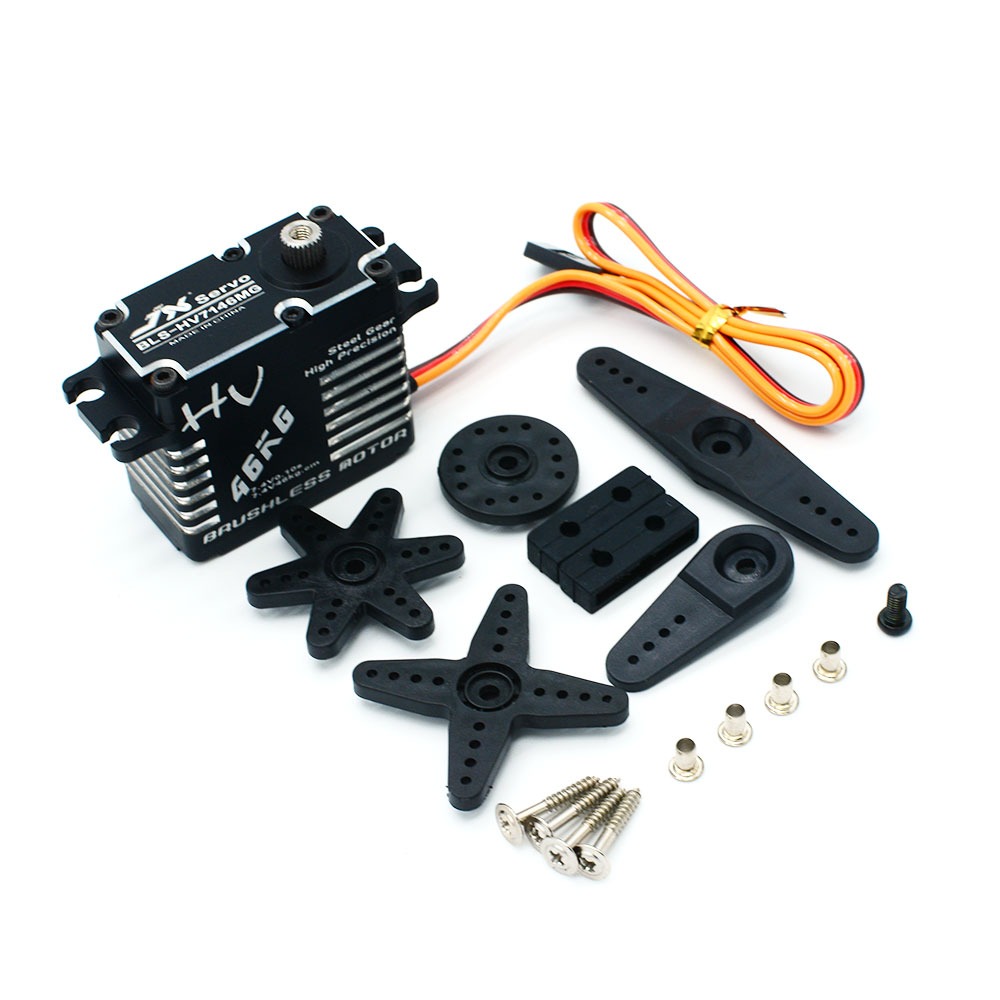

JX SERVO – 46kg metal gear servo

Descrizione

“Pulse width:1000-2000μs=90°
Pulse width:500-2500μs=180°
Dead band: 2μs 1520μs / 330hz
Motor: Brushless Motor
Operating Speed (6.0V): 0.12sec/60°
Operating Speed (7.4V): 0.10sec/60°
Stall Torque (6.0V): 38.6kg.cm
Stall Torque (7.4V): 47.8kg.cm
Dimensions:40.5X20.5X36mm
Weight: 71g
Connector Wire Length: JR 265 mm
Bearing: 2B”
