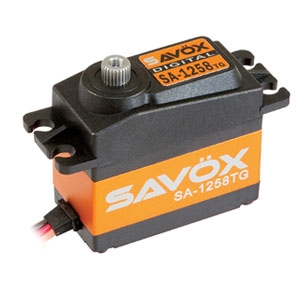

The SC1258TG is a high speed standard size servo which combines leading edge technology with super high 12-bit (4096) resolution for smooth operation.
- Extremely strong titanium gears ensure long-life, durability, and light weight.
- Ideal for CCPM on 600 and 700 class heli, steering servo on 1/10 scale buggies.
- Aluminum middle case allows for cooler operating temperatures.
- Torque @ 4.8v – 9.6kg/133.3oz-in
- Torque @ 6v – 12.0kg166.6oz-in
- Speed @ 4.8v – 0.10 sec/60 deg
- Speed @ 6v – 0.08 sec/60 deg
- Dimensions L x W x H (mm): 40.8 x 20.2 x 37.2
- Weight: 64g
- Operating Temperature: 14° – 122°F (-10° – 50°C)
- Running Current (no load): 100mA @4.8V, 120mA @6.0V
- Stall Current (at locked): 4000mA @4.8V, 5000mA @6.0V
- Idle Current: 5mA @4.8V, 5mA @6.0V
- Wire Length: 250 +/- 5mm
- Output Gear Spline: 25 Tooth
- Bearings: 2BB
- Operating Travel: 100° (1000 → 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 800 → 2200 µ second
- Maximum Travel: Appx 130° (900 → 2100 µ second)
- Refresh Rate: 333 Hz
- Motor Type: Coreless
