Descrizione

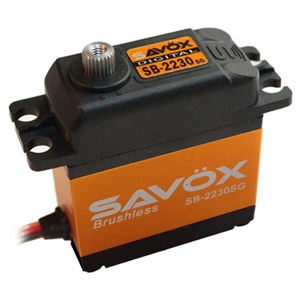

The Savox SB-2230SG Monster Torque Brushless servo contains unique steel gears to accommodate the massive output torque of this servo in a slightly taller case design.
Features:
- Combines leading edge technology with super high 12 bit (4096) resolution.
- Ideal for giant scale aircraft, monster truck, and 1/8 scale off road.
- Brushless motor provides longer life and cooler operating temps.
- Extremely strong unique steel gears ensure long-life and durability
Specifications:
- Torque @ 6v – 36.0kg/499.9oz-in
- Torque @ 7.4v – 42.0kg/583.3oz-in
- Speed @ 6v – 0.16 sec/60 deg
- Speed @ 7.4v – 0.13 sec/60 deg
- Dimensions L x W x H (mm): 40.3 x 20.2 x 44.9
- Weight: 84g
- Operating Temperature: 14° – 122°F (-10° – 50°C)
- Running Current (no load): 180mA @6.0V, 220mA @7.4V
- Stall Current (at locked): 7500mA @6.0V, 9200mA @7.4V
- Idle Current: 5mA @6.0V, 5mA @7.4V
- Wire Length: 200 +/- 5mm
- Output Gear Spline: 25 Tooth
- Bearings: 2BB
- Operating Travel: 100° (1000 → 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 800 → 2200 µ second
- Maximum Travel: Appx 130° (900 → 2100 µ second)
- Refresh Rate: 333 Hz
- Motor Type: Brushless
